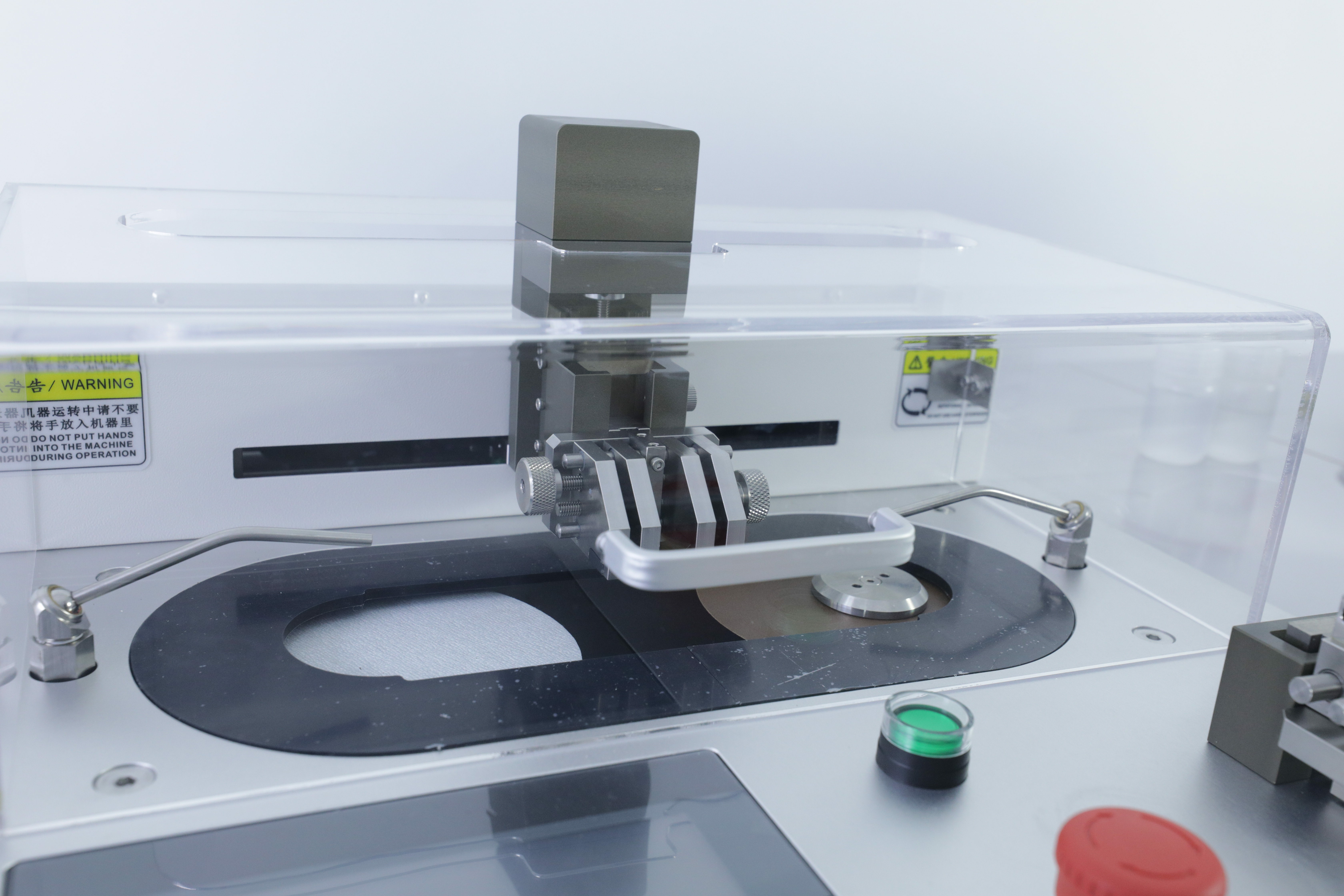

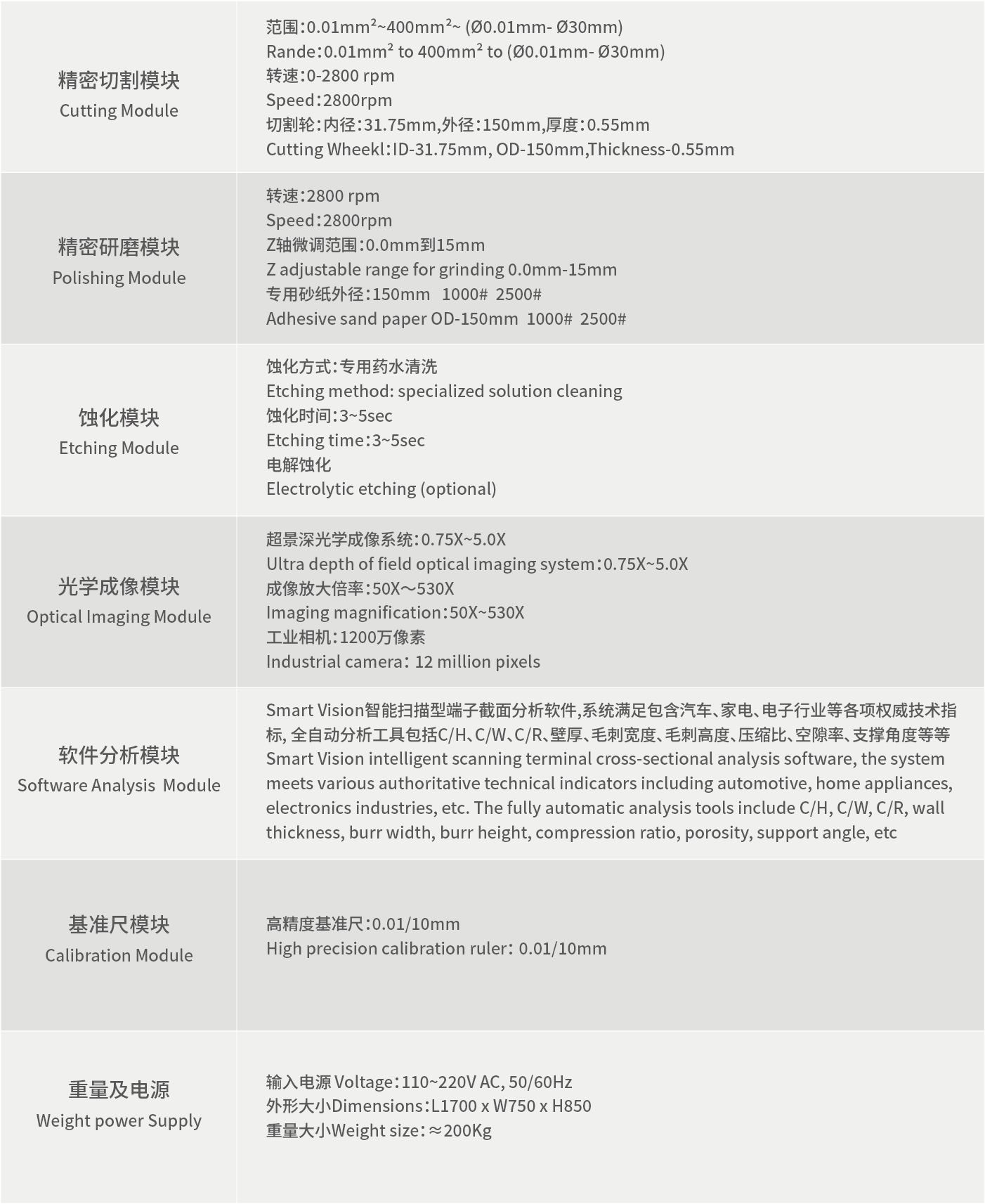

精密切割模块 Cutting Module | 范围:0.01mm²~400mm²~ (Ø0.01mm- Ø30mm) Rande: 0.01mm² to 400mm² to (Ø0.01mm- Ø30mm) 转速:0-2800 rpm Speed :2800rpm 切割轮:内径:31.75mm,外径:150mm,厚度:0.55mm Cutting Wheekl:ID-31.75mm, OD-150mm,Thickness-0.55mm |

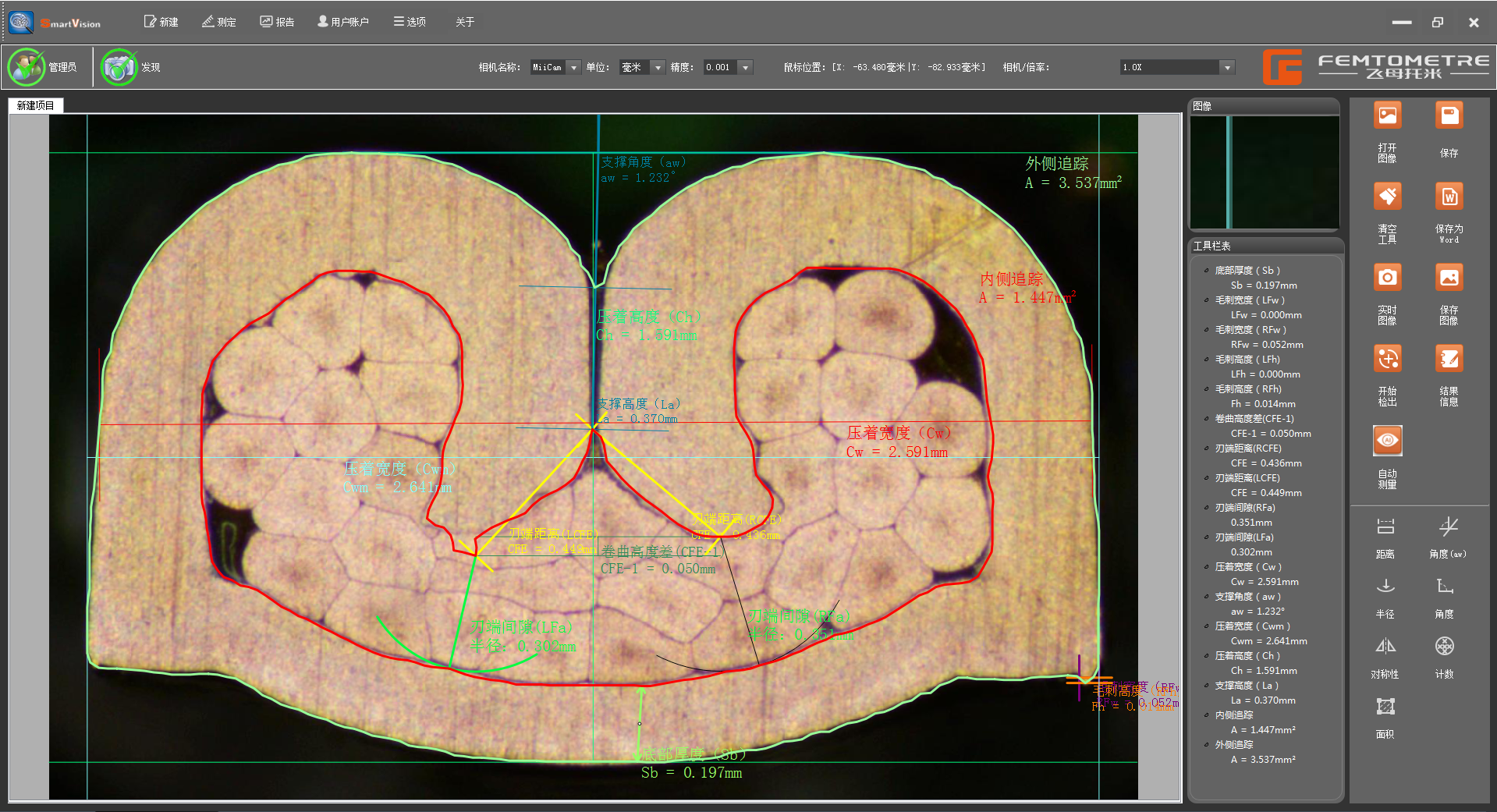

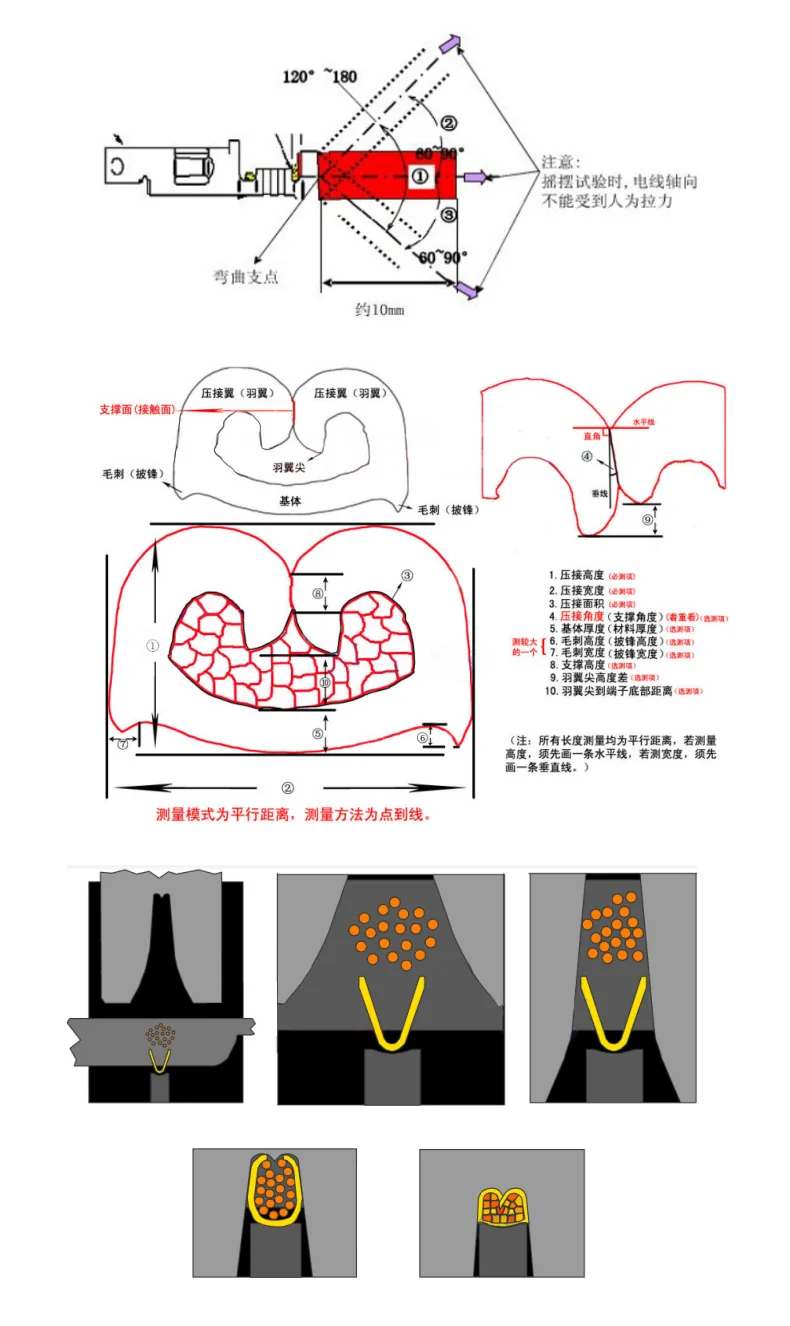

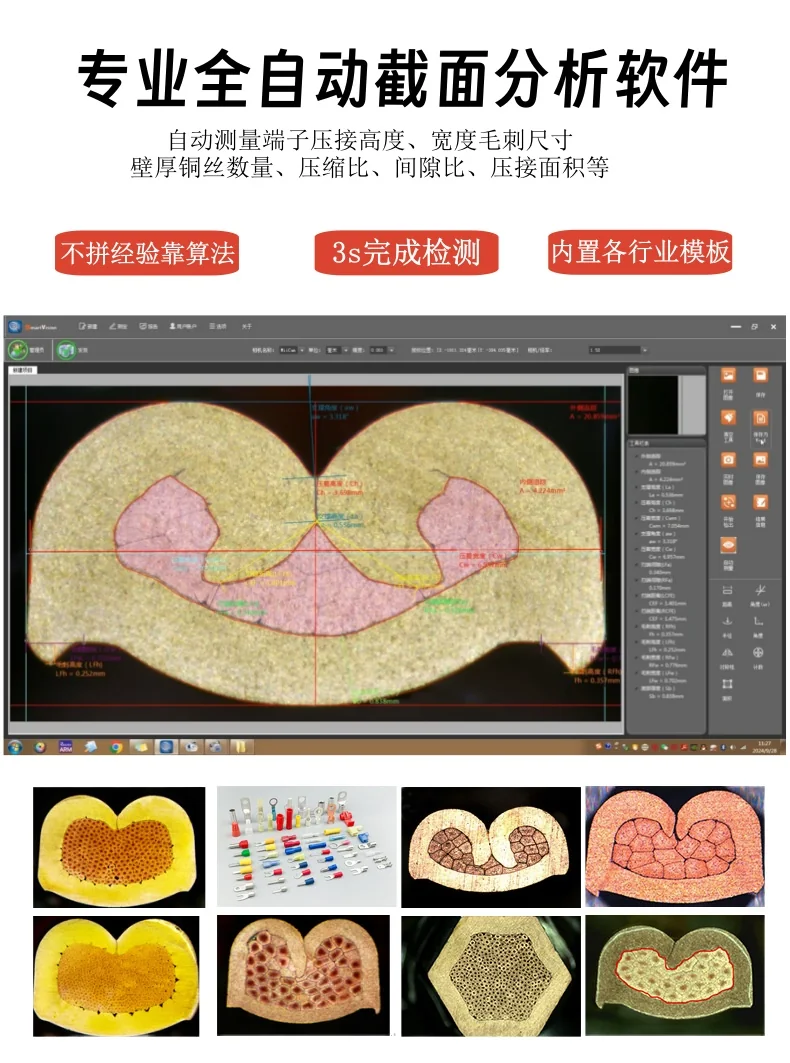

软件分析模块 Software Analysis Module | Smart Vision智能扫描型端子截面分析软件,系统满足包含汽车、家电、电子行业等各项权威技术指标, 全自动分析工具包括C/H、C/W、C/R、壁厚、毛刺宽度、毛刺高度、压缩比、空隙率、支撑角度等等。 Smart Vision intelligent scanning terminal cross-sectional analysis software, the system meets various authoritative technical indicators including automotive, home appliances, electronics industries, etc. The fully automatic analysis tools include C/H, C/W, C/R, wall thickness, burr width, burr height, compression ratio, porosity, support angle, etc. |
