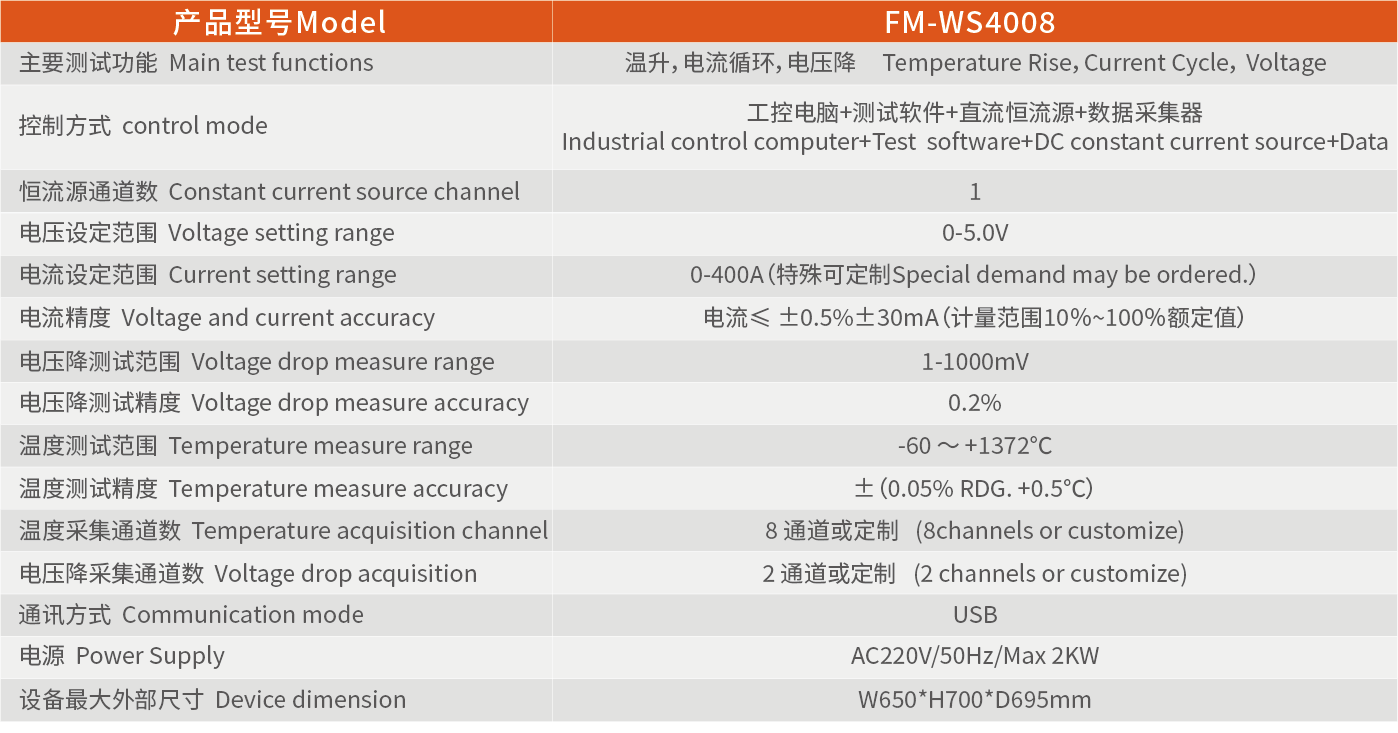

主要测试功能Main test functions | 温升，电流循环，电压降 Temperature Rise，Current Cycle， Voltage |
控制方式control mode | 工控电脑+测试软件+直流恒流源+数据采集器 Industrial control computer+Test software+DC constant current source+Data |
恒流源通道数Constant current source channel | 1 |
电压设定范围Voltage setting range | 0-5.0V |
电流设定范围Current setting range | 0-100A（特殊可定制Special demand may be ordered.） |
电流精度Voltage and current accuracy | 电流≤ ±0.5%±30mA（计量范围10％~100％额定值） |

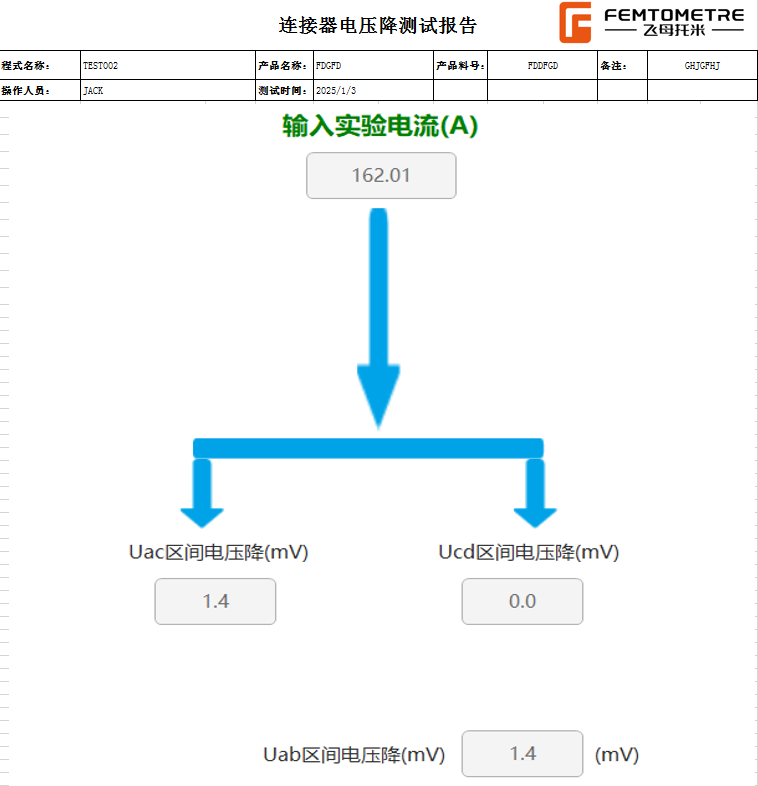

电压降测试范围Voltage drop measure range | 1-1000mV |
电压降测试精度Voltage drop measure accuracy | 0.2% |

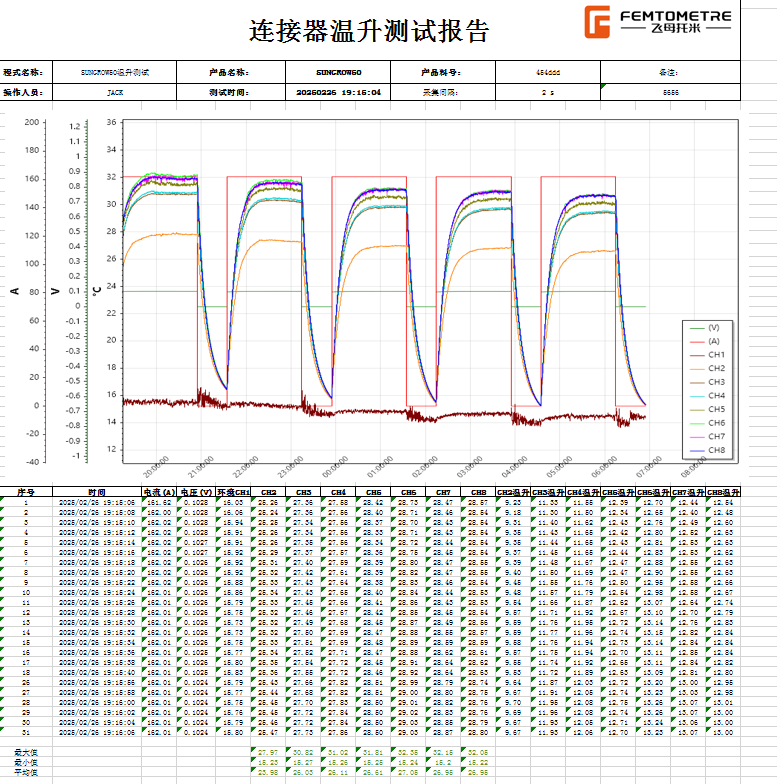

温度测试范围Temperature measure range | -50 ～ +260℃ |
温度测试精度Temperature measure accuracy | ±（0.05% RDG. +0.5℃） |
温度采集通道数Temperature acquisition channel | 8 通道或定制 (8channels or customize) |
电压降采集通道数Voltage drop acquisition | 2 通道或定制 (2 channels or customize) |
通讯方式Communication mode | USB |
电源Power Supply | AC220V/50Hz/Max 2KW |
设备最大外部尺寸Device dimension | W650*H700*D695mm |
